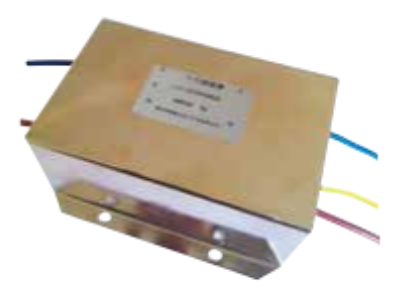

• Military grade single phase filters are available from 1A to 35A.
• dramatically reducing EMC/EMI noise of switching power supplies and inverters
• good common/differential mode insertion loss performance
• wide frequncy range with typical 400Hz working point
• customized design for specified insertion loss, working current, voltage, size and connection type

Circuit board filtering module is the most suitable product for DC/DC power supply to suppress the noise. Compliance with the military standard, the working temperature is from -55°C to +125°C.

Switching power supply generally introduces common mode noise in the frequency range from 10 kHz ~ 50 MHz or even higher. Therefore, to effectively reduce these noises, the common mode inductor shall have a high enough impedance. To achieve this specification, the high permeability Manganese-zinc ferrite and the amorphes material are the most appropriate choices. The Common Inductor's impedance Z_s consist of the inductance X_s and the resistance R_s.

• Working Temperature: -40°C ~ +105°C for industry, -55°C ~ +125°C for military
• Packaging size: 22mmx17mmx22mm max
• Max current: 2A ~ 10A
• Application: EMI filtering

• Working Temperature: -40°C ~ +105°C for industry, -55°C ~ +125°C for military
• Packaging size: 35mmx22mmx28mm max
• Max current: 2A ~ 12A
• Application: EMI filtering

With standardized and customized magnetic components and EMI filter solution for military-grade power supply, UPS emergency power, smart grid, rail transport, Photovoltaic grid-connected inverter, communication, Crootem Electronics involving actively in the renewable energy, e-mobility, defense and industrial applications.
