A type of Transformer with flat design, suitable of high density electronic devices.
Feature:
- Flat design for optimized structure of power supply;
- Good cross winding coupling, low leakage inductance;
- High TG material, stable properties, good homogeneity;
- Max power: 150W;
- Working Frequency: 200kHz - 500 kHz;
- working temperature range: from -55°C to + 125°C;
- RoHS Conform;
- used for DC/DC forward section circuit;
- Applications: Power Supply in communication, consumer electronics, automotive, rail transportation, variable-frequency drive, UPS, LED illumination, etc;
Standard Products:
| Product ID | Product | Input Voltage in V | Power in W | Output Voltage in V | Winding Ratio | Inductance in µH | Leakage Inductance in µH |
Dielectrics voltage-resistance |
Insolation in MΩ | Weight in g | Type |
| PT150WT-24S03-DPY |
Planar Transformer
24 V Series |
18-36
|
150
|
3.3 | 3/1 |
≥24
|
≤0.5
|
DC 1500
|
>500
|
11
|
a
|
| PT150WT-24S05-DPY | 5 | 3/2 | |||||||||
| PT150WT-24S09-DPY | 9 | 3/3 | |||||||||
| PT150WT-24S12-DPY | 12 | 3/4 | |||||||||
| PT150WT-24S15-DPY | 15 | 3/5 | |||||||||
| PT150WT-24S24-DPY | 24 | 3/8 | |||||||||
| PT150WT-24S28-DPY | 28 | 3/10 | |||||||||
| PT150WT-24S03-DPT |
Planar Transformer
24 V Series |
18-36
|
150
|
3.3 | 3/1 |
≥24
|
≤0.5
|
DC 1500
|
>500
|
11
|
b
|
| PT150WT-24S05-DPT | 5 | 3/2 | |||||||||
| PT150WT-24S09-DPT | 9 | 3/3 | |||||||||
| PT150WT-24S12-DPT | 12 | 3/4 | |||||||||
| PT150WT-24S15-DPT | 15 | 3/5 | |||||||||
| PT150WT-24S24-DPT | 24 | 3/8 | |||||||||
| PT150WT-24S28-DPT | 28 | 3/10 | |||||||||
| PT150WT-48S03-DPY |
Planar Transformer
48 V Series |
36-72
|
150
|
3.3 | 6/1 |
≥24
|
≤0.5
|
DC 1500
|
>500
|
11
|
a
|
| PT150WT-48S05-DPY | 5 | 6/2 | |||||||||
| PT150WT-48S09-DPY | 9 | 6/3 | |||||||||
| PT150WT-48S12-DPY | 12 | 6/4 | |||||||||
| PT150WT-48S15-DPY | 15 | 6/5 | |||||||||
| PT150WT-48S24-DPY | 24 | 6/8 | |||||||||
| PT150WT-48S28-DPY | 28 | 6/10 | |||||||||
| PT150WT-48S03-DPT |
Planar Transformer
48 V Series |
36-72
|
150
|
3.3 | 6/1 |
≥24
|
≤0.5
|
DC 1500
|
>500
|
11
|
b
|
| PT150WT-48S05-DPT | 5 | 6/2 | |||||||||
| PT150WT-48S09-DPT | 9 | 6/3 | |||||||||
| PT150WT-48S12-DPT | 12 | 6/4 | |||||||||
| PT150WT-48S15-DPT | 15 | 6/5 | |||||||||
| PT150WT-48S24-DPT | 24 | 6/8 | |||||||||
| PT150WT-48S28-DPT | 28 | 6/10 |
Note:
- typical values of inductance are measured at 100kHz, 0.3Vrms
- other inductance, current and packing are possible on inquiry

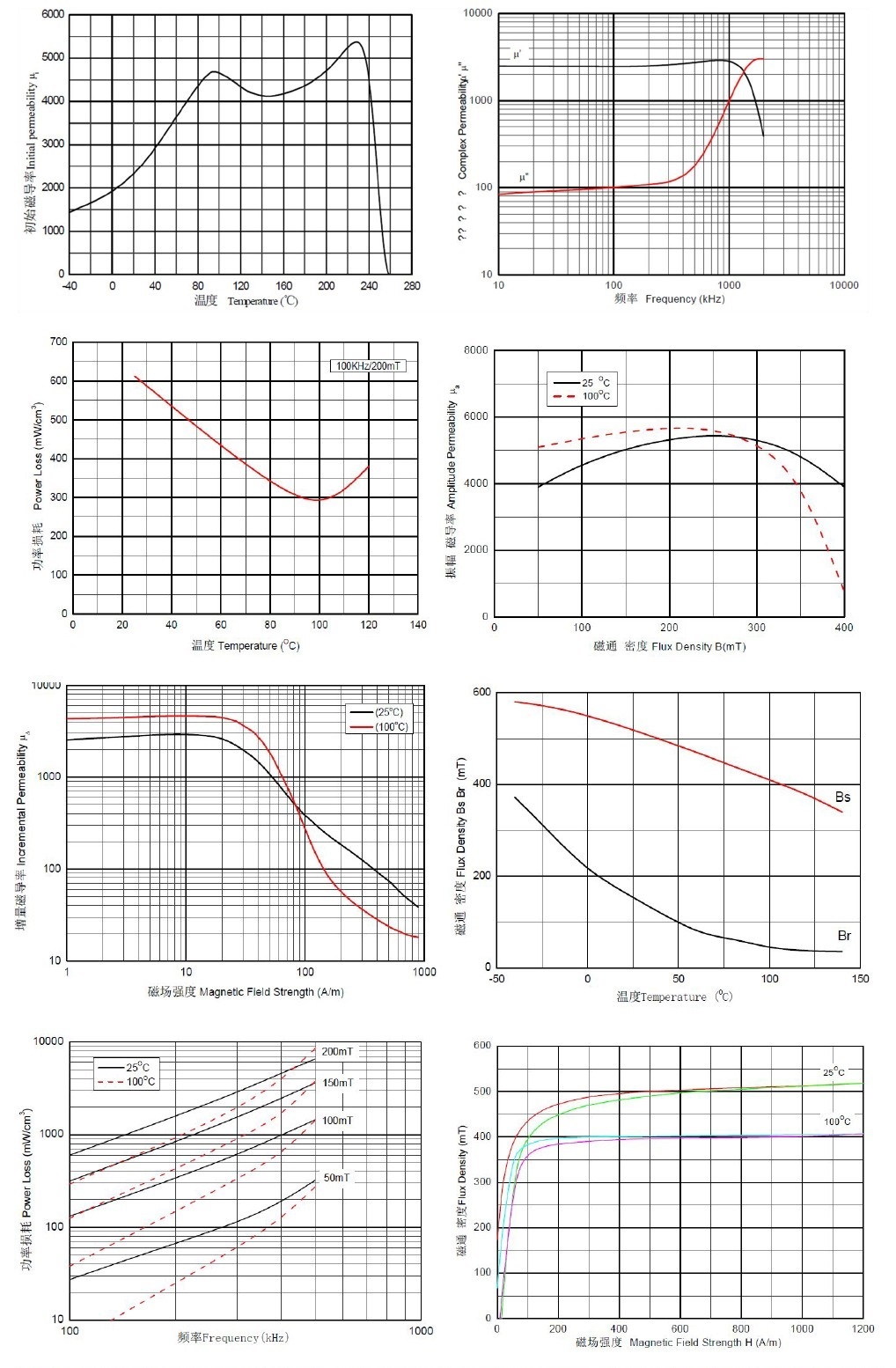

| Property | Test Condition | |||||||||
| Initial Permeability µ1 | f=10 kHz, B<0.25 mT | 25°C | 2500±25% | |||||||
|
Saturation Magnetic Flux Density
Bs in mT |
50 Hz
|
25°C | 520 | |||||||
| 100°C | 410 | |||||||||
| 120°C | 380 | |||||||||
|
Residual Magnetic Flux Density
Br in mT |
25°C | 160 | ||||||||
| 100°C | 50 | |||||||||
| 120°C | 40 | |||||||||
|
Coercive Force
Hc in A/m |
25°C | 10 | ||||||||
| 100°C | 6 | |||||||||
| 120°C | 5 | |||||||||
|
Power Loss
Pv in mW/cm3 |
100 kHz, 200mT
|
25°C | 600 | |||||||
| 60°C | 400 | |||||||||
| 100°C | 280 | |||||||||
| 120°C | 380 | |||||||||
| Curie Temperature Tc in °C |
10 kHz, B<0.25 mT
|
>230 | ||||||||
| Resistivity in Ω⋅m | 25°C | 3.5 | ||||||||
| Density in g/cm3 | 25°C | 4.8 | ||||||||
